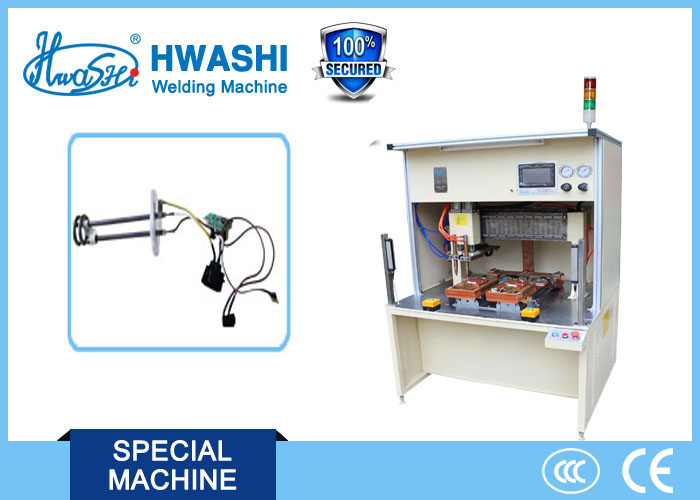

800mm / Sec Automatic Welding Machine , DC Spot Welder for Heating Tube
DESCRIPTION
This type of welding machine use MF DC welding method. The lower electrode is a flat locating mould. According to the position of welding spots, the work piece will be moved on the CNC working table. There are two sets of working tables with welding moulds for each side. When one of the working table enters into welding process, the other set is for the worker to prepare and load the material. Adopt medium frequency welding power source, the welding spot will be good at looking and working efficiency is high.
APPLICATION
Wildely applied to welding heating tube.
SPECIFICATION
| No. | Item | WL-AT-MF100K |
| 1 | Input Voltage | 380V three-phase |
| 2 | Power | 100KVA |
| 3 | Welding Power Supply System | Medium frequency inverter |
| 4 | Putput Voltage | DC5.5V |
| 5 | Max Welding Current | 15000A |
| 6 | Max Storage Welding Models | 30 types |
| 7 | Max Welding Positions | 500 |
| 8 | Table Size | 200mmx300mm |
| 9 | Moving Speed | 800mm/sec |
| 10 | Servo Motor Power | 450W |
| 11 | Welding Cylinder | 2 pcs(60x50mm) |
| 12 | Upper Electrode | Two groups |
| 13 | Lower Electrode | Large Flat Table |
COMPETITIVE ADVANTAGE
1. Professional
Over 20 years of experience in wire mesh industry and export more than 50 countries. Hwashi is the real professional manufacture.
2. Product Quality
The quality of products is the key of enterprise survival. Hwashi is ISO9001:2000 certificated manufacture.
3. Reasonable Price
We’ll exact control each producing process to reduce cost for our customers.
After clients receive the quotation, we’ll show you the rationality of the price and the difference between our products and other supplier’s products.
4. Delivery Time
The customer’s need is delivery on time, rather an excuse.
We’ll make a production plan before producing, and the sales will regularly inform the production schedule and process to the customers.
5. Communication
English is the basic and other languages can be understood.
All customers’ e-mail will be replied within 2 hours at working hours and must be replied within 12 hours at non-working hours.
6. Customized
Personalized, professional service: we can provide different programs according to customers’ requirement, thus make customers choose the best and most appropriate one.
7. Technical Assistance
24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
